DAPI/FITC/Texas Red® ULTRA Pinkel Fluorescence Filter Set for LED Light Sources
- SPECIFICATIONS
- DESCRIPTION
LED optimized ULTRA Series tri-band pinkel filter set for DAPI, FITC, Texas Red® and all associated fluorophores
ULTRA Series DAPI, FITC, and Texas Red® multiband pinkel fluorescence filter set designed to provide bright, high-contrast images of samples tagged with multiple fluorophores. This filter set is ideal for use with LED light sources and can be used with Alexa Fluor® 350, Alexa Fluor® 488, Alexa Fluor® 594, and many other fluorophores. ULTRA Series filter sets provide better overall performance than our standard filter sets by using a combination of tight wavelength control (typically ± 1.5 nm), ultra-steep edges, deeper blocking, and the industry’s highest transmission levels. They are also specified to produce zero pixel shift when filters are switched out in order to image multiple fluorophores in a single sample. All Alluxa optical filters are durable and hard-coated using our innovative SIRRUS plasma deposition process.
| Application(s) | Widefield Fluorescence |
|---|---|
| Main Fluorophore(s) | DAPI, FITC, Texas Red® (Dextran) |
| Alternate Fluorophore(s) | 1-ANS, 5-FAM, 5-ROX, 7-Hydroxy-4-methylcoumarin, Alexa Fluor® 350, Alexa Fluor® 405, Alexa Fluor® 488, Alexa Fluor® 594, AMCA (pH 9), ATTO 390, ATTO 488, ATTO 495, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO RHO13, ATTO Thio12, BCECF@pH5.2, BCECF@pH5.5, BCECF@pH9, BO-PRO-3, BOBO-3, BODIPY® TR-X, BODIPY® TR-X (Phallacidin), BODIPY®-TMSCC, C-PC, Calcein, Calcium Crimson, Calcium Green-1, Calcofluor White 2MR, Carboxy SNARF®-1 (pH 9), CellTrace BODIPY® TR, CellTrace Calcein Violet, CellTracker Red CMTPX, CF350, CF405M, CF405S, CF488A, CF583, CF594, CF594ST, Coumarin 1, Coumarin 30, Cresyl Violet perchlorate, Crystal Violet (glycerol), CyQUANT®, DCF, DHPE Texas Red®, DY-490, DY-490XL MegaStokes, EBFP, EGFP, FlAsH, Fluo-3, Fluo-4, Fluorescein (0.1M NaOH), Fluorescein (IgG), Fluoro-Emerald, FluoSpheres® Red, FluoSpheres® Yellow-Green, FusionRed, HcRed1, HCS CellMask Green, HCS LipidTOX Red Neutral Lipid Stain, HCS LipidTOX Red Phospholipidosis Detection Reagent, HCS NuclearMask Blue, HiLyte Fluor 488, HmGFP, Hoechst® 33258, Hoechst® 33342, Kaede Green, Katushka2S, LIVE/DEAD® Fixable Green Dead Cell Stain, LIVE/DEAD® Fixable Red Dead Cell Stain, LysoTracker® Yellow, Marina Blue®, mCherry, Me-Coumarin, mHoneydew, MitoTracker® Green, MitoTracker® Green FM, mKate2, mPlum, mRFP1, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), Oregon Green® 488, PA-GFP (post-activation), Pacific Blue, PicoGreen® dsDNA Quantitation Reagent, PromoFluor-370LSS, PromoFluor-405, PromoFluor-488, PromoFluor-488 Premium, PromoFluor-594, ReAsH, Rhodamine 110, Rhodamine 123, Rhodamine Green, Rhodol Green, sgBFP, Sodium Green, Spectrum Blue, Spectrum Green, Spectrum Red, SYBR® Gold, SYBR® Green I, SYBR® Safe, SYTO® 11, SYTO® 16, SYTO® RNASelect, SYTOX® Green, TagBFP, TagFP635, TagYFP, Texas Red® R-PE, Texas Red®-X, TurboFP602, TurboFP650, Vybrant® DyeCycle Green, Vybrant® DyeCycle Violet, ZsGreen1 |
| Light Source(s) | CoolLED pE-4000, Lumencor, Inc. SOLA 365 Light Engine®, Lumencor, Inc. SPECTRA X (nIR) Light Engine®, Lumencor, Inc. SPECTRA X (Teal) Light Engine®, M395L4 395nm LED (Thorlabs), M490L3 490nm LED (Thorlabs), M565L3 565nm LED (Thorlabs), Metal Halide Lamp, Xenon Arc Lamp |

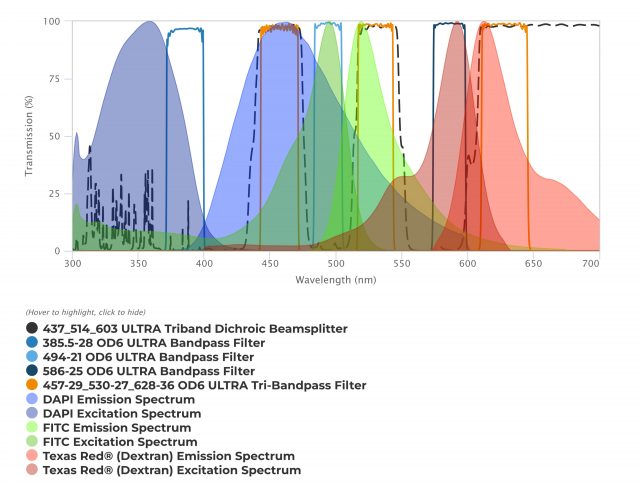

385.5-28 OD6 ULTRA Bandpass Filter
494-21 OD6 ULTRA Bandpass Filter
586-25 OD6 ULTRA Bandpass Filter
