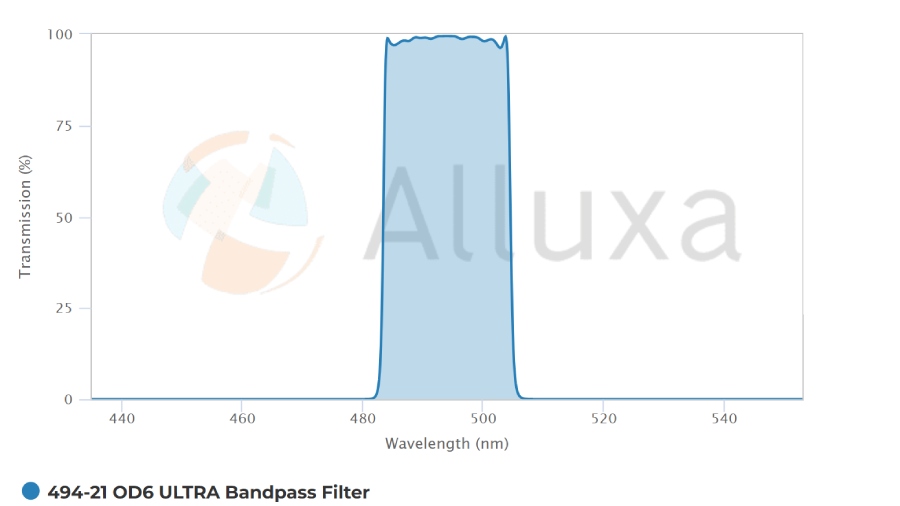

494-21 OD6 ULTRA Bandpass Filter

ULTRA Series bandpass filter with a 494 nm (± 1.5 nm) center wavelength (CWL), a 21 nm full-width at half-maximum (FWHM), and OD6 out-of-band blocking from 300 nm to 680 nm (with additional blocking to 1150 nm). This bandpass filter has exceptionally steep edges and greater than 95% average transmission from 485 nm to 503 nm. It is coated on a 2 mm thick fused silica substrate and mounted in a standard 25 mm (+0/-0.1 mm) diameter, 3.5 mm (± 0.1 mm) thick anodized aluminum ring. Alluxa ULTRA Series fluorescence filters are designed to optimize fluorescence instrument performance, resulting in bright, high contrast images of target molecules. ULTRA Series filters provide better overall performance than our standard fluorescence filters by using a combination of tight wavelength control, ultra-steep edges, deeper blocking, and the industry’s highest transmission levels. All Alluxa optical filters are highly durable and hard-coated using our innovative SIRRUS™ plasma deposition process. Contact us for custom sizing.
