DAPI/FITC/TRITC/Cy®5/Cy®7 ULTRA Pinkel Fluorescence Filter Set
- SPECIFICATIONS
- DESCRIPTION
ULTRA Series penta-band pinkel filter set for DAPI, FITC, TRITC, Cy®5, Cy®7 and all associated fluorophores
ULTRA Series DAPI, FITC, TRITC, Cy®5, and Cy®7 multiband pinkel fluorescence filter set designed to provide bright, high-contrast images of samples tagged with multiple fluorophores. This filter set is also ideal for use with Alexa Fluor® 405, GFP, RFP, Alexa Fluor® 660, Alexa Fluor® 750, and many other similar fluorophores. ULTRA Series filter sets provide better overall performance than our standard filter sets by using a combination of tight wavelength control (typically ± 1.5 nm), ultra-steep edges, deeper blocking, and the industry’s highest transmission levels. They are also specified to produce zero pixel shift when filters are switched out in order to image multiple fluorophores in a single sample. All Alluxa optical filters are durable and hard-coated using our innovative SIRRUS plasma deposition process.
| Application(s) | Widefield Fluorescence |
|---|---|
| Main Fluorophore(s) | Cy®5, Cy®7, DAPI, FITC, TRITC |
| Alternate Fluorophore(s) | 1-ANS, 1,2-Diphenylacetylene, 5-FAM, 7-Hydroxy-4-methylcoumarin, Alexa Fluor® 405, Alexa Fluor® 488, Alexa Fluor® 568, Alexa Fluor® 660, Alexa Fluor® 680 APC, Alexa Fluor® 680 R-PE, Alexa Fluor® 750, AMCA (pH 9), AsRed2, ATTO 488, ATTO 495, ATTO 565, ATTO 740, ATTO OXA12, ATTO RHO101, ATTO RHO11, ATTO RHO12, ATTO RHO3B, ATTO Thio12, Azami Green, Azami Green (monomeric), BCECF@pH5.2, BCECF@pH5.5, BCECF@pH9, BO-PRO-1, BO-PRO-3, BOBO-1, BOBO-3, BODIPY® FL, BODIPY® FL (IgG), BODIPY® TR-X, BODIPY® TR-X (Phallacidin), C5-Oxacyanine, C5-Thiacyanine, C7-Indocyanine, Calcein, Calcein Red-Orange, Calcium Crimson, Calcium Green-1, Carboxy SNARF®-1 (pH 6), Cascade Yellow®, CellMask Deep Red, CellTrace Calcein Red-Orange, CellTrace Calcein Violet, CellTracker Red CMTPX, CF405L, CF405M, CF405S, CF488A, CF568, CF570, CF583, CF660C, CF660R, CF750, Coumarin 1, Cy®3.5, CyQUANT®, DCF, DCM (acetonitrile), DCM (MeOH), DHPE Texas Red®, Di-8-ANEPPS, DiA, DiR, DRAQ5, DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-480, DY-480XL MegaStokes, DY-590, DY-647, DY-650, DY-651, DY-656, DY-750, DY-751, EBFP, EGFP, Emerald, Fluo-4, Fluorescein (0.1M NaOH), Fluorescein (IgG), Fluoro-Emerald, FluoSpheres® Dark Red, FluoSpheres® Red, FluoSpheres® Yellow-Green, FM 4-64, FusionRed, HCS CellMask Green, HCS LipidTOX Green Neutral Lipid Stain, HCS LipidTOX Green Phospholipidosis Detection Reagent, HCS LipidTOX Red Neutral Lipid Stain, HCS LipidTOX Red Phospholipidosis Detection Reagent, HCS NuclearMask Deep Red, HiLyte Fluor 488, HiLyte Fluor 647, HiLyte Fluor 750, HiLyte Plus 750, HmGFP, JC-1, Katushka2S, KFP-Red, LDS 751, Lissamine Rhodamine, LIVE/DEAD® Fixable Aqua Dead Cell Stain, LIVE/DEAD® Fixable Green Dead Cell Stain, LIVE/DEAD® Fixable Near-IR Dead Cell Stain, LIVE/DEAD® Fixable Violet Dead Cell Stain, LysoSensor Blue, LysoSensor Yellow/Blue (pH 3), LysoTracker® Blue, LysoTracker® Green, LysoTracker® Red, mApple, Marina Blue®, mCherry, Methylene Blue, mHoneydew, MitoTracker® Green, MitoTracker® Green FM, MitoTracker® Red, mPlum, mRFP1, mStrawberry, mTangerine, mWasabi, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), NIR2, Oregon Green® 488, PA-GFP (post-activation), PA-TagRFP, Pacific Blue, PerCP-Cy5.5®, pHrodo® succinimidyl ester, PicoGreen® dsDNA Quantitation Reagent, Pro-Q® Diamond, PromoFluor-370LSS, PromoFluor-380LSS, PromoFluor-405, PromoFluor-488, PromoFluor-488 Premium, PromoFluor-500LSS, PromoFluor-505, PromoFluor-568, PromoFluor-590, PromoFluor-594, PromoFluor-647, PromoFluor-670, PromoFluor-750, Propidium iodide, PS-CFP2, ReAsH, Rhodamine 110, Rhodamine Green, Rhodamine Red-X, Rhodol Green, Sapphire, sgBFP, sgGFP, Spectrum Blue, Spectrum Far Red, Spectrum Green, Spectrum Orange, Sulforhodamine 101, SYBR® Gold, SYBR® Green I, SYPRO® Ruby, SYTO® 13, SYTO® 16, SYTO® 60, SYTO® 62, SYTO® RNASelect, SYTOX® Green, T-Sapphire, TagBFP, TagGFP, TagGFP2, TagRFP, tdTomato, Texas Red® R-PE, ThiolTracker Violet (GSH), TurboFP602, Vybrant® DyeCycle Green, Vybrant® DyeCycle Ruby, Vybrant® DyeCycle Violet, WEGFP (post-activation), X-rhod-1, YO-PRO®-1, YOYO®-1, ZsGreen1 |
| Light Source(s) | CoolLED pE-4000, Lumencor, Inc. SPECTRA X (nIR) Light Engine®, Xenon Arc Lamp |

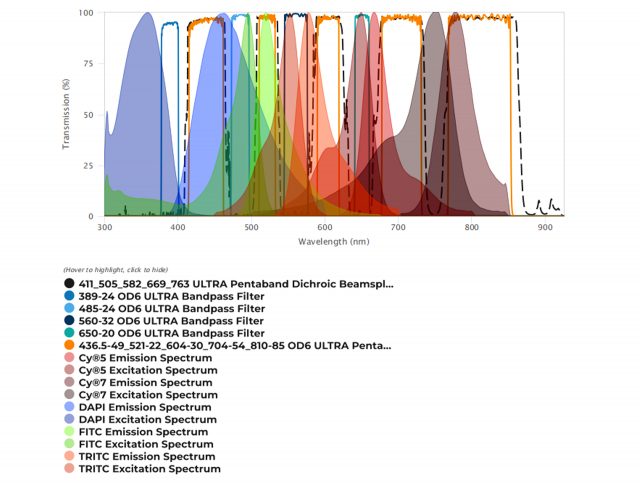

389-24 OD6 ULTRA Bandpass Filter
485-24 OD6 ULTRA Bandpass Filter
560-32 OD6 ULTRA Bandpass Filter
650-20 OD6 ULTRA Bandpass Filter
747.5-12 OD6 ULTRA Bandpass Filter
436.5-49_521-22_604-30_704-54_810-85 OD6 ULTRA Pentaband Filter
