BP477-31 OD6

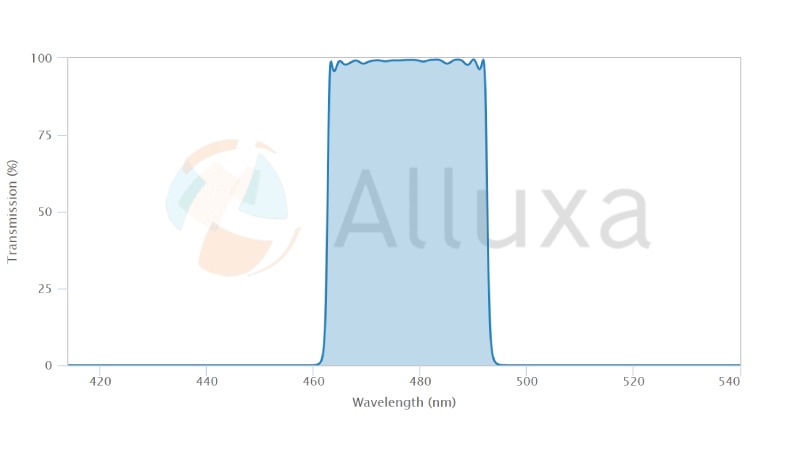

Bandpass filter with a 477 nm (± 3.0 nm) center wavelength (CWL), a 31 nm full-width at half-maximum (FWHM), and wide-range OD6 out-of-band blocking from 300 nm to 710 nm. This bandpass filter has steep edges and greater than 93% average transmission from 464 nm to 490 nm. It is coated on a 2 mm thick Borofloat® substrate and mounted in a standard 25 mm (+0/-0.1 mm) diameter, 3.5 mm (± 0.1 mm) thick anodized aluminum ring. Alluxa OD6 bandpass filters are all designed to increase fluorescence instrument performance, resulting in bright, high contrast images of target molecules. All Alluxa optical filters are highly durable and hard-coated using our innovative SIRRUS™ plasma deposition process. Contact us for custom sizing.
