769.9-0.1 OD7

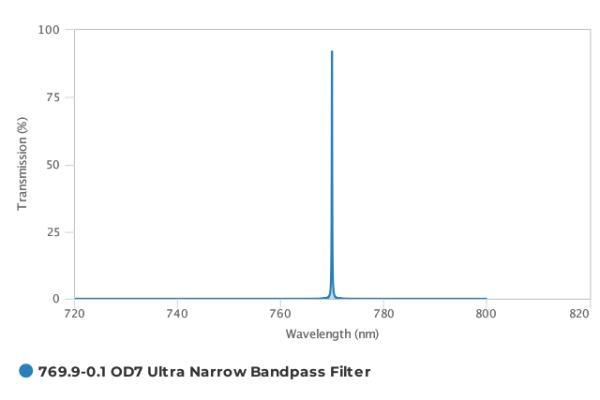

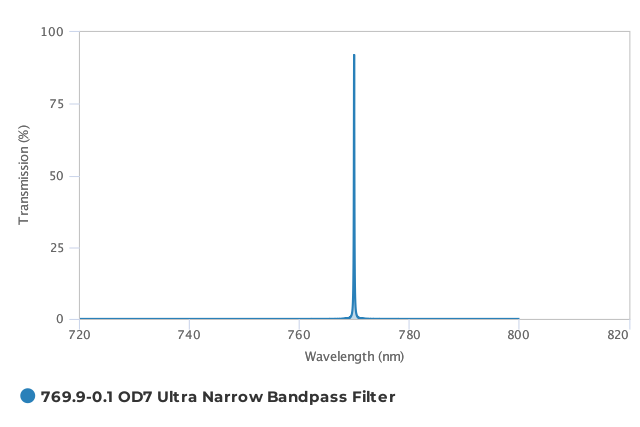

Ultra-narrowband optical interference filter with a 769.9 nm center wavelength (CWL), a 0.1 nm full-width at half-maximum (FWHM), and wide-range OD7 out-of-band blocking from 300 nm to 1200 nm. This is a single cavity filter with moderately steep edges, a flat top, and transmission that is greater than 85% at 769.9 nm. This ultra-narrowband filter is coated on a 3.3 mm thick Borofloat® substrate and mounted in a 25.0 mm ( 0/-0.2 mm) diameter, 5 mm (± 0.1 mm) thick anodized aluminum ring. Alluxa ultra-narrow bandpass filters have the highest transmission and narrowest bandwidths currently available. And because they are hard-coated using our innovative SIRRUS™ plasma deposition process, all Alluxa optical filters are highly durable and resistant to laser damage. Contact us for custom sizing options.
