662.46-0.45 OD4

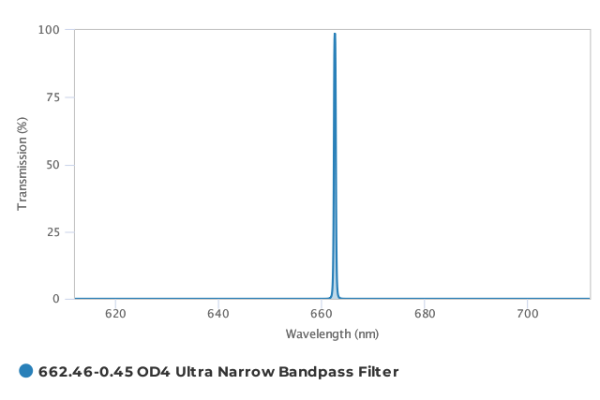

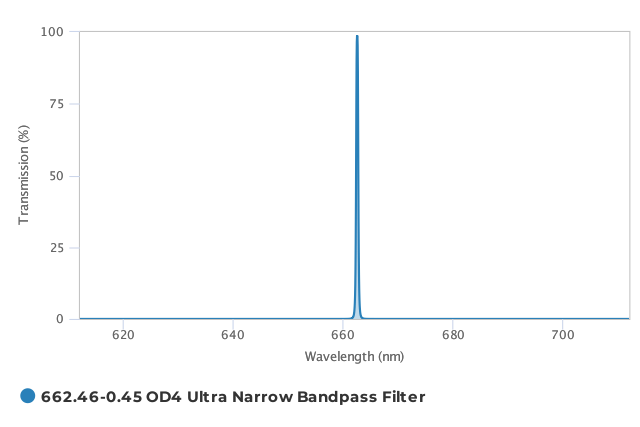

Ultra-narrowband optical interference filter with a 662.46 nm center wavelength (CWL), a 0.45 nm full-width at half-maximum (FWHM), and wide-range OD4 out-of-band blocking from 200 nm to 1200 nm. This is a multi-cavity filter with transmission that is greater than 85% at 662.46 nm. This unmounted ultra-narrowband filter is coated on a 2 mm thick Borofloat® substrate and is 50 mm (+0/-0.2 mm) in diameter. Alluxa ultra-narrow bandpass filters have the highest transmission and narrowest bandwidths currently available. And because they are hard-coated using our innovative SIRRUS plasma deposition process, all Alluxa optical filters are highly durable and resistant to laser damage. Contact us for custom sizing options.
