描述
| Angle of Incidence | 0 Degrees |
|---|---|
| Center Wavelength | 656.4 nm ± 0.05 nm |
| FWHM | < 0.1 nm |
| † Transmission Band(s) | 656.4 nm > 50% T Absolute |
| Blocking Level | OD4 |
| * Blocking Range(s) | OD4: 380 to 643.2 nm, 669.6 to 1000 nm |
| Dimensions | 12.5 mm Diameter |
| Filter Thickness | 2.15 mm |
| Substrate Type | Polished N-BK7 |
| Assembly Type | Unmounted |

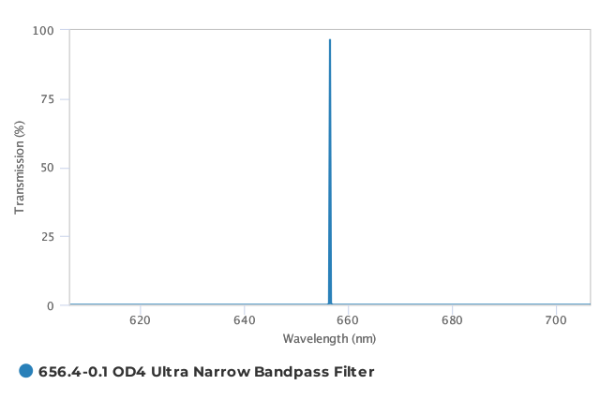

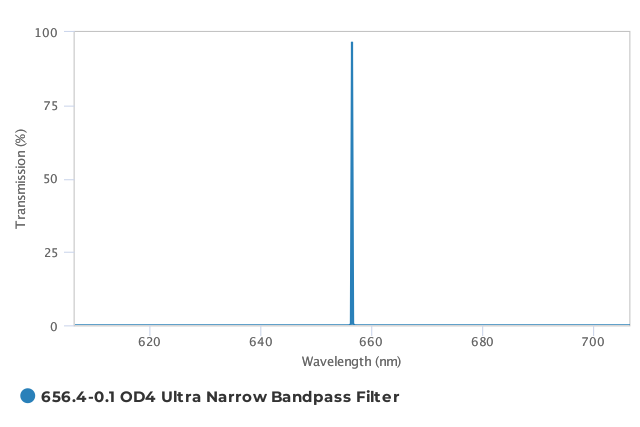

*Auxiliary blocking typical based on the displayed spectrum.
†For filters with less than 1nm bandwidth, measurement limitations may result in slight transmission variation. Please contact us for more information.
