描述
| Angle of Incidence | 0 Degrees |
|---|---|
| Center Wavelength | 656.3 nm ± 0.1 nm |
| FWHM | < 0.5 nm |
| † Transmission Band(s) | 656.3 nm > 70% T Absolute |
| Blocking Level | OD6 |
| * Blocking Range(s) | OD6: 400 to 649.3 nm, 663.3 to 1000 nm |
| Dimensions | 25.0 mm Diameter |
| Filter Thickness | 1.98 mm |
| Substrate Type | N-BK7 |
| Assembly Type | Unmounted |

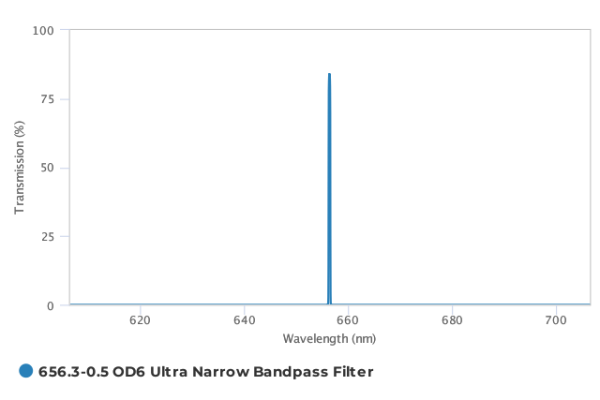

*Auxiliary blocking typical based on the displayed spectrum.
†For filters with less than 1nm bandwidth, measurement limitations may result in slight transmission variation. Please contact us for more information.
