532.08-0.17 OD5

$3,061.00

Ultra-narrowband optical interference filter with a 532.08 nm center wavelength (CWL), a 0.17 nm full-width at half-maximum (FWHM), and wide-range OD5 out-of-band blocking from 200 nm to 1150 nm. This is a single-cavity filter with greater than 80% peak transmission. This unmounted ultra-narrowband filter is coated on a 2 mm thick fused silica substrate and is 24.15 mm (± 0.1 mm) in diameter. Alluxa ultra-narrow bandpass filters have the highest transmission and narrowest bandwidths currently available. And because they are hard-coated using our innovative SIRRUS plasma deposition process, all Alluxa optical filters are highly durable and resistant to laser damage. Contact us for custom sizing options.

SKU： 7056 分类：

描述

Angle of Incidence  0 Degrees
Filter Design Single Cavity
Center Wavelength  532.08 nm +0.4 / -0.1 nm
FWHM  < 0.2 nm
† Transmission Band(s)  Peak> 80% T Absolute
Blocking Level  OD5
* Blocking Range(s)  OD5: 200 to 512 nm, 552 to 1150 nm; OD4: 1150 to 1200 nm
Dimensions 24.2 mm Diameter
Filter Thickness 2.0 mm
Substrate Type  Fused Silica
Assembly Type Unmounted
Custom Sizing Available yes

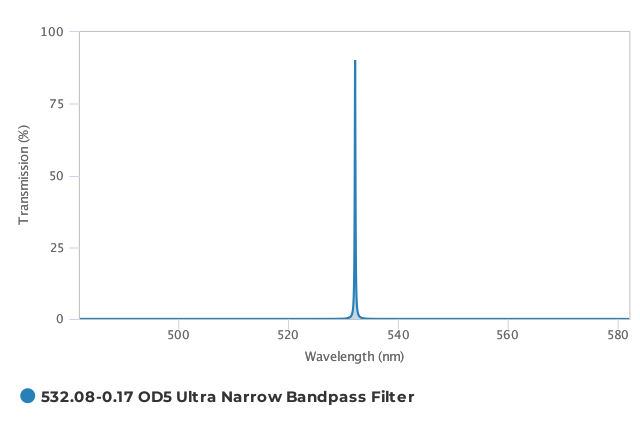

*Auxiliary blocking typical based on the displayed spectrum.

†For filters with less than 1nm bandwidth, measurement limitations may result in slight transmission variation. Please contact us for more information.
