500-30 OD6

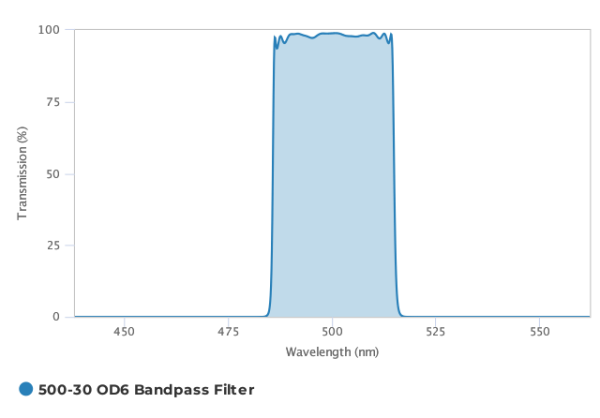

Bandpass filter with a 500 nm (± 3.0 nm) center wavelength (CWL), a 30 nm full-width at half-maximum (FWHM), and OD6 out-of-band blocking from 250 nm to 670 nm (with additional blocking to 1100 nm). This bandpass filter has steep edges and greater than 93% average transmission from 488 nm to 512 nm. It is coated on a 2 mm thick fused silica substrate and mounted in a standard 25 mm (+0/-0.1 mm) diameter, 3.5 mm (± 0.1 mm) thick anodized aluminum ring. Alluxa OD6 bandpass filters are all designed to increase fluorescence instrument performance, resulting in bright, high contrast images of target molecules. All Alluxa optical filters are highly durable and hard-coated using our innovative SIRRUS plasma deposition process. Contact us for custom sizing.
