描述
| Center Wavelength | 438 nm ± 2.0 nm, 513 nm ± 2.0 nm, 572 nm ± 2.0 nm |
|---|---|
| FWHM | Band 1: 24 nm ± 2.0 nm, Band 2: 24 nm ± 2.0 nm, Band 3: 22 nm ± 2.0 nm |

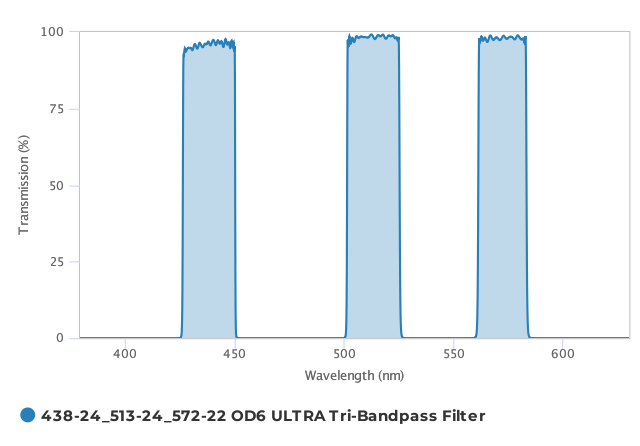

| † Transmission Band(s) | 429 to 447 nm > 93% T Average, 504 to 522 nm > 93% T Average, 564 to 580 nm > 93% T Average |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Blocking Level | OD6 |
| * Blocking Range(s) | OD6: 300 to 417 nm, 456 nm, 458 to 493 nm, 495 nm, 530 nm, 532 to 556 nm, 589 nm, 592 to 900 nm; OD3: 900 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Dimensions | 25.0 mm Diameter |
| Substrate Type | Fused Silica |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Custom Sizing Available | yes |
| Main Fluorophore(s) | CFP, mCherry, TurboYFP |
| Alternate Fluorophore(s) | 5-ROX, 6-JOE, 6-TET, Alexa Fluor® 514, Alexa Fluor® 532, Alexa Fluor® 568, Alexa Fluor® 594, Amplex Gold, AsRed2, ATTO 425, ATTO 514, ATTO 520, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO Thio12, Auramine O, BO-PRO-1, BO-PRO-3, BOBO-1, BOBO-3, BODIPY® R6G, BODIPY® TR-X, BODIPY® TR-X (Phallacidin), BODIPY®-DiMe, C-PC, Calcium Crimson, Carboxy SNARF®-1 (pH 9), Carboxynapthofluorescein, CellTrace BODIPY® TR, CellTracker Red CMTPX, CF450, CF514, CF517ST, CF583, CF594, CF594ST, Coumarin 314, Coumarin 343, Crystal Violet (glycerol), DHPE Texas Red®, DY-500, DY-500XL MegaStokes, DY-590, ECFP, ECL Plus, Eosin, Eosin Y, Erythrosin-5-isothiocyanate, EYFP, FlAsH, FluoSpheres® Red, FusionRed, HCS LipidTOX Green Phospholipidosis Detection Reagent, HCS LipidTOX Red Neutral Lipid Stain, HCS LipidTOX Red Phospholipidosis Detection Reagent, JOJO-1, Katushka2S, KFP-Red, LIVE/DEAD® Fixable Red Dead Cell Stain, mApple, mHoneydew, MitoTracker® Red, mKate2, mPlum, mRFP1, mStrawberry, Nile Red, Oregon Green® 514, PA-TagRFP, PO-PRO-1, POPO-1, PromoFluor-415, PromoFluor-505, PromoFluor-590, PromoFluor-594, ReAsH, Rhodamine 6G, Spectrum Aqua, SYTO® 42, SYTO® 43, SYTO® 44, SYTO® 45, TagCFP, TagFP635, TagYFP, Texas Red® (Dextran), Texas Red® R-PE, Texas Red®-X, TO-PRO®-1, TOTO®-1, TurboFP602, TurboFP650, Vybrant® DyeCycle Green |
*Auxiliary blocking typical based on the displayed spectrum.
