描述
| Center Wavelength | 431 nm ± 2.0 nm, 509.5 nm ± 2.0 nm, 592 nm ± 2.0 nm, 681 nm ± 3.0 nm |
|---|---|
| FWHM | Band 1: 30 nm ± 2.0 nm, Band 2: 16 nm ± 2.0 nm, Band 3: 30 nm ± 2.0 nm, Band 4: 38 nm Nominal |
| † Transmission Band(s) | 418 to 444 nm > 93% T Average, 579 to 605 nm > 93% T Average, 665 to 697 nm > 93% T Average, 504 to 515 nm > 93% T Average |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Blocking Level | OD6 |
| * Blocking Range(s) | OD6: 300 to 406 nm, 456 to 492 nm, 527 to 568 nm, 617 to 652 nm, 710 to 800 nm |
| Parallelism | < 3.0 Arcseconds |
| Dimensions | 25.0 mm Diameter |
| Substrate Type | Fused Silica |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Custom Sizing Available | yes |
| Main Fluorophore(s) | Cy®5, DAPI, FITC, TRITC |
| Alternate Fluorophore(s) | 1,2-Diphenylacetylene, 5-FAM, 5-TAMRA (pH7), 7-Hydroxy-4-methylcoumarin, Acridine Yellow, Alexa Fluor® 405, Alexa Fluor® 546, Alexa Fluor® 647, Alexa Fluor® 680 APC, Alexa Fluor® 680 R-PE, AMCA (pH 9), AmCyan1, Amplex UltraRed, APC, ATTO 465, ATTO 550, ATTO 565, ATTO 635, ATTO 647, ATTO OXA12, ATTO RHO11, ATTO RHO3B, Azami Green, Azami Green (monomeric), BCECF@pH5.2, BCECF@pH5.5, BO-PRO-3, BOBO-3, BODIPY® 650/665-X, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Oxacyanine, C3-Thiacyanine (PrOH), C5-Indocyanine, C5-Thiacyanine, Calcein, Calcium Orange, Calcofluor White 2MR, Carboxy SNARF®-1 (pH 6), Cascade Blue®, CellMask Deep Red, CellMask Orange, CellTrace Calcein Violet, CF405M, CF405S, CF488A, CF568, CF570, CF640R, CF647, Coumarin 1, Coumarin 6, Cy®2, CypHer5 (pH 4.67), Dapoxyl(2-aminoethyl)sulfonamide, DDAO, DiA, DiD, DiO, DRAQ5, DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-547, DY-630, DY-631, DY-633, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EBFP, EGFP, Emerald, EVOblue-30, FlAsH, Fluo-3, Fluorescein (0.1M NaOH), Fluorescein (IgG), Fluoro-Emerald, FluoSpheres® Blue, FluoSpheres® Dark Red, FluoSpheres® Red, FM 1-43, HCS CellMask Deep Red, HCS CellMask Green, HCS NuclearMask Deep Red, HiLyte Fluor 647, HiLyte Plus 647, Hoechst® 33258, Hoechst® 33342, LDS 751, LIVE/DEAD® Fixable Aqua Dead Cell Stain, LIVE/DEAD® Fixable Far Red Dead Cell Stain, LysoSensor Blue, Magnesium Orange, mApple, Marina Blue®, Me-Coumarin, Merocyanine 540, Methylene Blue, MitoTracker® Deep Red, MitoTracker® Green, MitoTracker® Green FM, MitoTracker® Orange, mTangerine, mWasabi, NBD, NBD-X, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PA-TagRFP, Pacific Blue, PerCP-Cy5.5®, pHrodo® succinimidyl ester, PO-PRO-3, Pontamine Fast Scarlet 4B, POPO-3, Porphin, Pro-Q® Diamond, PromoFluor-380LSS, PromoFluor-395LSS, PromoFluor-405, PromoFluor-488, PromoFluor-488 Premium, PromoFluor-546, PromoFluor-647, PS-CFP2, Quasar® 670, R-phycoerythrin, Resorufin, Rhod-2, Rhodamine (phalloidin), Sapphire, sgBFP, sgGFP, Spectrum Blue, Spectrum Far Red, Spectrum Orange, SYTO® 13, SYTO® 16, SYTO® 60, SYTO® 62, SYTO® 9, SYTOX® Red, T-Sapphire, TagBFP, TagGFP, TagGFP2, TagRFP, tdTomato, ThiolTracker Violet (GSH), TO-PRO®-3, TOTO®-3, TurboGFP, TurboRFP, Vybrant® DyeCycle Ruby, Vybrant® DyeCycle Violet, WEGFP (post-activation), wtGFP, YO-PRO®-1, YOYO®-1 |

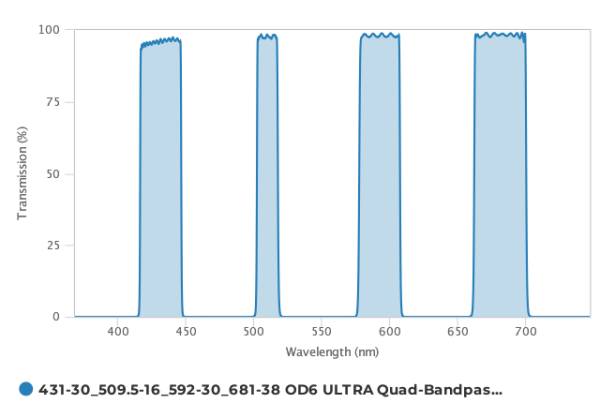

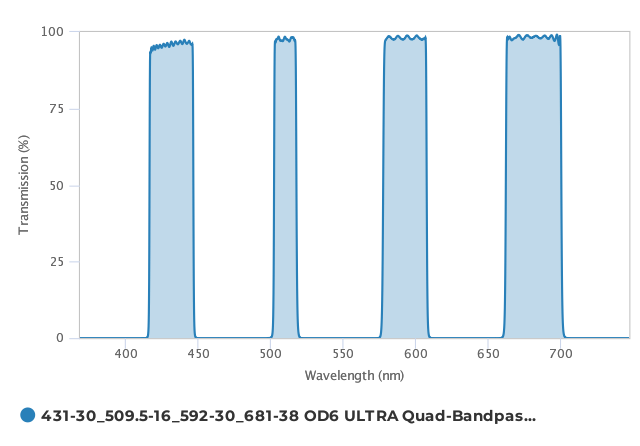

*Auxiliary blocking typical based on the displayed spectrum.
