描述
| Center Wavelength | 390 nm ± 2.0 nm, 474 nm ± 2.0 nm, 547 nm ± 2.0 nm, 634 nm ± 3.0 nm |
|---|---|
| FWHM | Band 1: 28 nm ± 2.0 nm, Band 2: 28 nm ± 2.0 nm, Band 3: 24 nm ± 2.0 nm, Band 4: 20 nm Nominal |
| † Transmission Band(s) | 379 to 401 nm > 90% T Average, 463 to 485 nm > 93% T Average, 538 to 556 nm > 93% T Average, 627 to 641 nm > 93% T Average |
| Transmitted Wavefront Error | < 0.25 Wave RMS @ 632.8nm |
| Blocking Level | OD6 |
| * Blocking Range(s) | OD6: 300 to 369 nm, 408 nm, 409 to 453 nm, 455 nm, 493 nm, 495 to 525 nm, 529 nm, 568 nm, 570 to 615 nm, 617 nm, 651 nm, 653 to 900 nm; OD3: 900 to 1100 nm |
| Parallelism | < 3.0 Arcseconds |
| Dimensions | 25.0 mm Diameter |
| Substrate Type | Fused Silica |
| Filter Thickness | 2.0 mm |
| Assembly Type | Anodized Aluminum Ring |
| Assembly Thickness | 3.5 mm |
| Custom Sizing Available | yes |
| Main Fluorophore(s) | Cy®5, DAPI, FITC, TRITC |
| Alternate Fluorophore(s) | 1,2-Diphenylacetylene, 5-FAM, 5-TAMRA (pH7), 7-Hydroxy-4-methylcoumarin, Acridine Yellow, Alexa Fluor® 405, Alexa Fluor® 546, Alexa Fluor® 647, Alexa Fluor® 680 APC, Alexa Fluor® 680 R-PE, AMCA (pH 9), AmCyan1, Amplex UltraRed, APC, ATTO 465, ATTO 550, ATTO 565, ATTO 635, ATTO 647, ATTO OXA12, ATTO RHO11, ATTO RHO3B, Azami Green, Azami Green (monomeric), BCECF@pH5.2, BCECF@pH5.5, BO-PRO-3, BOBO-3, BODIPY® 650/665-X, BODIPY® TMR-X, BODIPY® TMR-X (IgG), C3-Oxacyanine, C3-Thiacyanine (PrOH), C5-Indocyanine, C5-Thiacyanine, Calcein, Calcium Orange, Calcofluor White 2MR, Carboxy SNARF®-1 (pH 6), Cascade Blue®, CellMask Deep Red, CellMask Orange, CellTrace Calcein Violet, CF405M, CF405S, CF488A, CF568, CF570, CF640R, CF647, Coumarin 1, Coumarin 6, Cy®2, CypHer5 (pH 4.67), Dapoxyl(2-aminoethyl)sulfonamide, DDAO, DiA, DiD, DiO, DRAQ5, DsRed, DsRed Dimer2, DsRed Express T1, DsRed Tandem Dimer2, dTomato, DY-547, DY-630, DY-631, DY-633, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EBFP, EGFP, Emerald, EVOblue-30, FlAsH, Fluo-3, Fluorescein (0.1M NaOH), Fluorescein (IgG), Fluoro-Emerald, FluoSpheres® Blue, FluoSpheres® Dark Red, FluoSpheres® Red, FM 1-43, HCS CellMask Deep Red, HCS CellMask Green, HCS NuclearMask Deep Red, HiLyte Fluor 647, HiLyte Plus 647, Hoechst® 33258, Hoechst® 33342, LDS 751, LIVE/DEAD® Fixable Aqua Dead Cell Stain, LIVE/DEAD® Fixable Far Red Dead Cell Stain, LysoSensor Blue, Magnesium Orange, mApple, Marina Blue®, Me-Coumarin, Merocyanine 540, Methylene Blue, MitoTracker® Deep Red, MitoTracker® Green, MitoTracker® Green FM, MitoTracker® Orange, mTangerine, mWasabi, NBD, NBD-X, NeuroTrace® 500/525 Green Fluorescent Nissl Stain (RNA), Nile Blue (EtOH), Nile Blue (MeOH), Oxazine 1, PA-TagRFP, Pacific Blue, PerCP-Cy5.5®, pHrodo® succinimidyl ester, PO-PRO-3, Pontamine Fast Scarlet 4B, POPO-3, Porphin, Pro-Q® Diamond, PromoFluor-380LSS, PromoFluor-395LSS, PromoFluor-405, PromoFluor-488, PromoFluor-488 Premium, PromoFluor-546, PromoFluor-647, PS-CFP2, Quasar® 670, R-phycoerythrin, Resorufin, Rhod-2, Rhodamine (phalloidin), Sapphire, sgBFP, sgGFP, Spectrum Blue, Spectrum Far Red, Spectrum Orange, SYTO® 13, SYTO® 16, SYTO® 60, SYTO® 62, SYTO® 9, SYTOX® Red, T-Sapphire, TagBFP, TagGFP, TagGFP2, TagRFP, tdTomato, ThiolTracker Violet (GSH), TO-PRO®-3, TOTO®-3, TurboGFP, TurboRFP, Vybrant® DyeCycle Ruby, Vybrant® DyeCycle Violet, WEGFP (post-activation), wtGFP, YO-PRO®-1, YOYO®-1 |

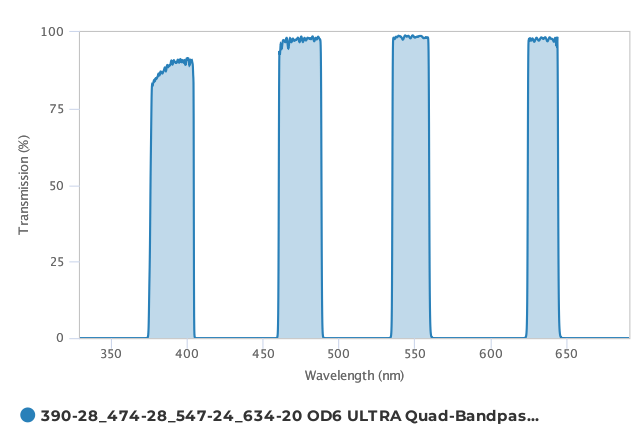

*Auxiliary blocking typical based on the displayed spectrum.
