1645.05-1 OD5

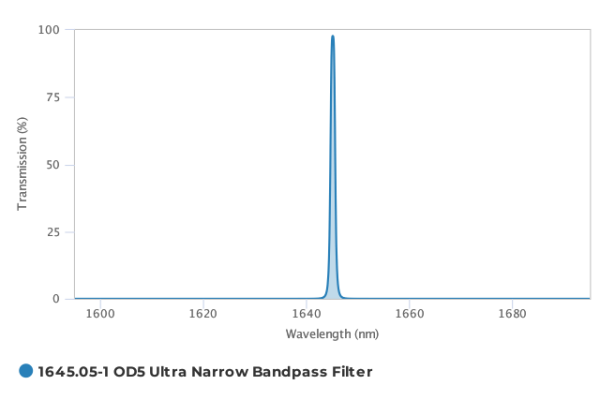

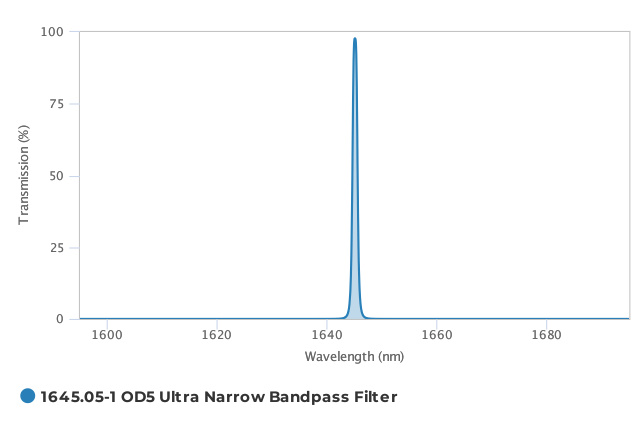

Ultra-narrowband optical interference filter with a 1645.05 nm center wavelength (CWL), a 1 nm full-width at half-maximum (FWHM), and wide-range OD5 out-of-band blocking from 500 nm to 1850 nm. This is a multi-cavity filter with transmission that is greater than 90% at 1645.05 nm. This ultra-narrowband filter is coated on a 2 mm thick fused silica substrate and mounted in a 25 mm (+0/-0.1 mm) diameter, 3.5 mm (± 0.1 mm) thick anodized aluminum ring. Alluxa ultra-narrow bandpass filters have the highest transmission and narrowest bandwidths currently available. And because they are hard-coated using our innovative SIRRUS plasma deposition process, all Alluxa optical filters are highly durable and resistant to laser damage. Contact us for custom sizing options.
