1083-1.4 OD3

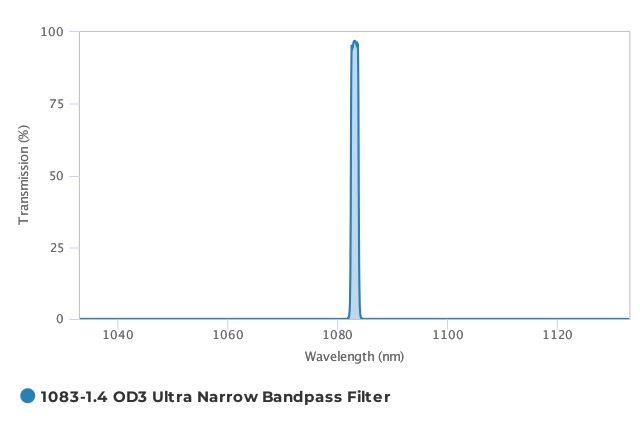

Ultra-narrowband optical interference filter with a 1083 nm center wavelength (CWL), a 1.4 nm full-width at half-maximum (FWHM), and wide-range OD3 out-of-band blocking from 480 nm to 1500 nm. This is a multi-cavity filter with exceptionally steep edges, a flat top, and transmission that is greater than 90% at 1083 nm. This unmounted ultra-narrowband filter is coated on a 2 mm thick polished Borofloat® substrate and is 25.4 mm (± 0.1 mm) in diameter. Alluxa ultra-narrow bandpass filters have the highest transmission and narrowest bandwidths currently available. And because they are hard-coated using our innovative SIRRUS plasma deposition process, all Alluxa optical filters are highly durable and resistant to laser damage. Contact us for custom sizing options.
