1064.16-0.4 OD5

$3,061.00

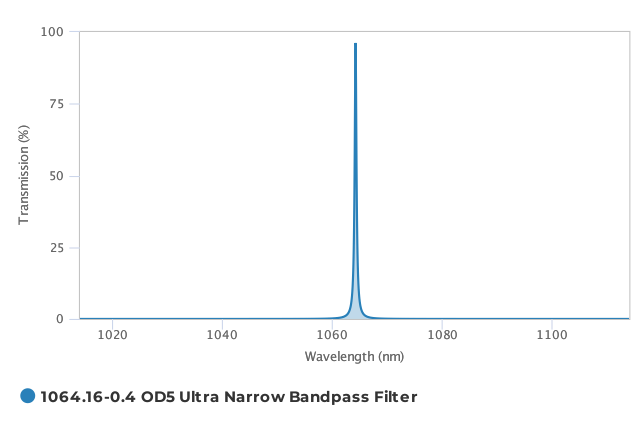

Ultra-narrowband optical interference filter with a 1064.16 nm center wavelength (CWL), a 0.4 nm full-width at half-maximum (FWHM), and wide-range OD5 out-of-band blocking from 200 nm to 1150 nm. This is a single-cavity filter with greater than 85% peak transmission. This ultra-narrowband filter is coated on a 2 mm thick fused silica substrate and mounted in a 25.4 mm (+0/-0.2 mm) diameter, 5 mm (± 0.1 mm) thick anodized aluminum ring. Alluxa ultra-narrow bandpass filters have the highest transmission and narrowest bandwidths currently available. And because they are hard-coated using our innovative SIRRUS plasma deposition process, all Alluxa optical filters are highly durable and resistant to laser damage. Contact us for custom sizing options.

SKU： 7055 分类：

描述

Angle of Incidence  0 Degrees
Filter Design Single Cavity
FWHM  < 0.6 nm
Center Wavelength  1064.16 nm +0.5 / -0.3 nm
† Transmission Band(s)  Peak> 85% T Absolute
Blocking Level  OD5
* Blocking Range(s)  OD5: 1094 to 1150 nm, 200 to 1024 nm; OD4: 1150 to 1200 nm
Dimensions 25.3 mm Diameter
Substrate Type  Fused Silica
Filter Thickness 2.0 mm
Assembly Type Anodized Aluminum Ring
Assembly Thickness 5.0 mm
Custom Sizing Available yes

*Auxiliary blocking typical based on the displayed spectrum.

†For filters with less than 1nm bandwidth, measurement limitations may result in slight transmission variation. Please contact us for more information.
